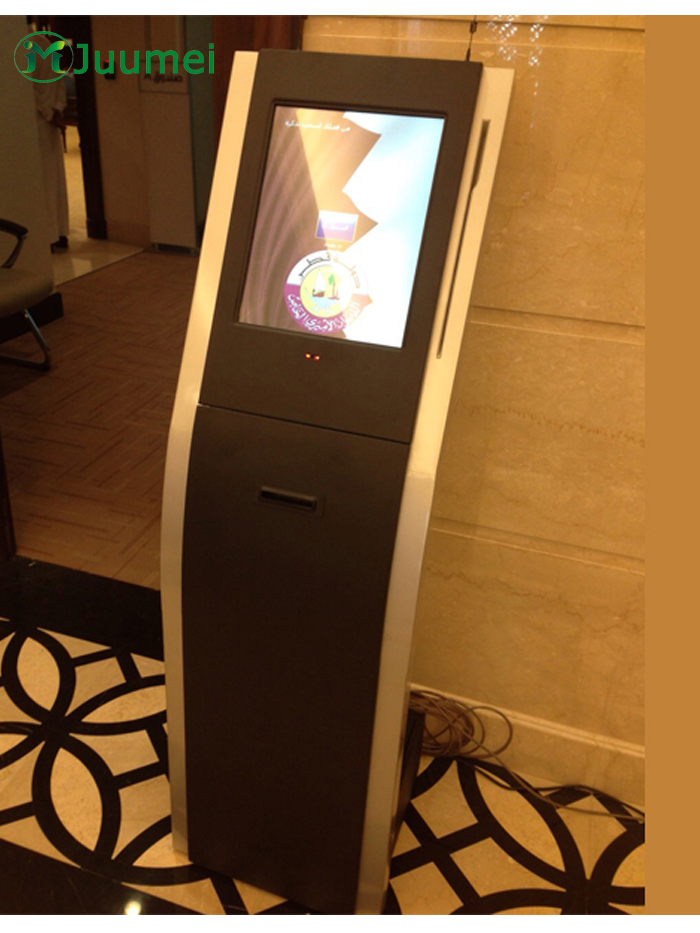

QK001/QK002/QK003 Specification
| LCD Size | 17 inch |
| Touch Screen | IR touch screen, single point touch life 50 million times; Resolution: 4096*4096 |
| Cabinet | Steel cabinet,Car metal paint,Antimagnetic, antistatic,Full steel
streamlined cabinet |
| Color | Main body Dark Grey, Two sides sliver, any color we can make |
| Power supply | 110--240V 50Hz/60Hz |
| Speaker | With double channel and stereo surround amplifier system Power :2 x 2W; Frequency response:20Hz-20KHz |
| Fan | Industrial control is axial flow fan, no noise, circulation cooling |
| Work environment | Temperature:+5℃~+35℃ Humidity: 40% ~ 80% |
| Port | USB,RJ45 or RJ11 |
| Net Weight | 45KG |
| Printer | 80mm thermal printers |
| Card Reader | Three track USB magnetic stripe card reader(only QK002) |
| Wireless Frequency | 433 channel, strong capability .150-500Meters Signal . |
| Product Size | 1450mm(H)*470mm(W)*250mm(D) |
| Packing size | 1580mm(H)*61mm(W)*550mm(D) |
Main function and Advantages:
1. System provides to customers by business segment to summarize
the handling features, such as total number of customers,
total handle, discard total number, did not apply for the total
number of waiting time, processing time, number of calls;
2. Systems according to the demand of the year, month, day, any
days, day time period to classify queries and statistics;
3. Number of business line management functions. Can handle a
variety of different business categories queuing services.
Customers can according to the prompts on the screen of number
dispenser machine, button and speed print output queue ticket;
4. Systems provide business data output, the output file for text
file or EXCEL function to provide business data uploads , can be
uploaded to the database through the internal network or specify
the file functions, according to customer requirements to
provide data on the need to filter the output function, providing
information output format can be configured according to customer
requirements function;
5. Ticket printing content editable, printable unit names, logos,
business names, queue number, queue time, courteous service
terms, slogans and so on. Print output length can be flexibly set.
6. Tickets can be set up out way, either a style sheet, also a
double sheet.
7. One Ticket machine can be with less than 255 service window.
Queuing number exceeds 999, the system will automatically
number rose to four. When the customer taken queue ticket,Can print
from the number on the ticket content learned before he (she) how
many people are still waiting before serving.
8. When queuing system call number, the counter display screen (or
the main display screen) will flash, the voice system will
also call queuing number. Voice system can achieve recall this
number, call back on a number, call any queuing number.
9. Counter LED and Main LED can scroll display any kind of language
, English ,Chinese ,Arabic,French etc.
10. queuing numbers on customer hands in different classes of
business can mutual transfer between counter window.
11. System can achieve more than one machine connected,can
simultaneously manage multiple entrances and exits of passenger
service hall and queuing numbers do not repeat.
